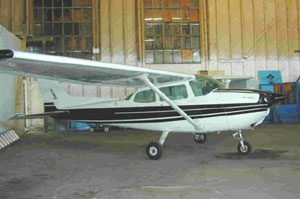

| Cessna 172N -
1978 |
|
|
Performance - Specifications |
Speed:
Maximum at Sea Level
Cruise, 75% Power at 8000 Feet
Vne (Never Exceed Speed)
Vno (Max. Structural Cruising) |
125 Knots
122 Knots
160 KIAS
128 KIAS |
Do Not
Use This Information For Flight Planning
|
|
Cruise: |
|
75% Power at
8000 Feet
40 Gallons Usable Fuel
50 Gallons Usable Fuel |
Range: 485 NM / Time: 4.1 HRS
Range: 630 NM / Time: 5.3 HRS |
Max. Range at 10,000 Feet
40 Gallons Usable Fuel
50 Gallons Usable Fuel |
Range: 575 NM / Time: 5.7 HRS
Range: 750 NM / Time: 7.4 HRS |
| Rate
of Climb at Sea Level: |
770 FPM |
|
Service Ceiling: |
14,200 Feet |
Takeoff Performance:
Ground Roll
Total Dist. over 50-FT Obstacle |
805 Feet
1440 Feet |
Landing Performance:
Ground Roll
Total Dist. over 50-FT Obstacle |
520 Feet
1250 Feet |
Stall
Speed (KCAS):
Flaps Up, Power Off
Flaps Down, Power Off |
50 Knots
44 Knots |
Maximum Weight:
Normal Category
Utility Category |
2300 Pounds
2000 Pounds |
Standard Empty Weight:
Skyhawk
Skyhawk II |
1393 Pounds
1419 Pounds |
Maximum Useful Load:
Skyhawk
Skyhawk II |
907 Pounds (normal) / 607 (utility)
881 Pounds (normal) / 581 (utility) |
|
Baggage Allowance: |
120 Pounds |
| Wing
Loading: |
13.2 Pounds/Sq.Ft. |
| Power
Loading: |
14.4 Pounds/HP |
Fuel
Capacity (Total):
Standard Tanks
Long Range Tanks |
43 Gallons / 40 Gallons useable
54 Gallons / 50 Gallons useable |
| Oil
Capacity: |
6 Quarts (sump); 7 Quarts if oil filter is
installed |
|
Engine: |
Avco Lycoming O-320-H2AD / 160 BHP at 2700
RPM |
|
Propeller: |
75 Inch (diameter) / Fixed Pitch |
|
Electrical System: |
28-Volt with Alternator; Avionics Master
Switch |
|
Wingspan: |
36 Feet |
