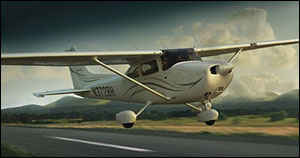

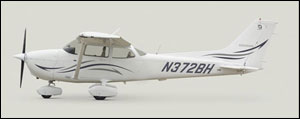

Cessna 172R
Performance - Specifications
Speed:
    Maximum at Sea Level
    Cruise, 80% Power at 8000 Feet

123 Knots
122 Knots
Do Not Use This Information For Flight Planning







Cruise:
    60% Power at 10,000 Feet
    80% Power at 8,000 Feet
Range: 687 NM / Time: 6.6 HRS
Range: 580 NM / Time: 4.8 HRS
Rate of Climb at Sea Level: 720 FPM
Service Ceiling: 13,500 Feet
Takeoff Performance:
    Ground Roll
    Total Dist. over 50-FT Obstacle

945 Feet
1685 Feet
Landing Performance:
    Ground Roll
    Total Dist. over 50-FT Obstacle

550 Feet
1295 Feet
Stall Speed (KCAS):
    Flaps Up, Power Off
    Flaps Down, Power Off

51 Knots
47 Knots
Maximum Weight:
    Ramp - Normal/Utility
    Takeoff or Landing - Normal/Utility

2457 Pounds / 2107 Pounds
2450 Pounds / 2100 Pounds
Standard Empty Weight: 1699 Pounds
Maximum Useful Load:

Normal Category
    Utility Category

758 Pounds
468 Pounds
Baggage Allowance: 120 Pounds
Wing Loading: 14.1 Pounds/Sq.Ft.
Power Loading: 15.3 Pounds/HP
Fuel Capacity:

Total Capacity
    Total Usable
    Total Capacity Each Tank
    Total Usable Capacity Each Tank

56.0 Gallons
53.0 Gallons
28.0 Gallons
26.5 Gallons
Oil Capacity:

Sump
    Total

8 Quarts
9 Quarts
Engine: Textron Lycoming IO-360-L2A / 160 BHP at 2400 RPM
Propeller: 75 Inch (diameter) / Fixed Pitch
